SOA Suite - Adding an existing Database MDS connection to a new Application

When we store artifacts like XSDs in database MDS and want to reuse it in a new SOA application following are the steps which we need to follow.

1. Once the SOA application is created expand the IDE connections ->SOA-MDS and right click on the MDS connection and select the option Add to Application.

2. Once "Add to Application" is finished in the left hand side of the Jdeveloper find Application Resources , expand->Descriptors->ADF META-INF->adf-config.xml.

3. Open the adf-config.xml and look for the mds connection name "mstore-usage_2". Many a time this entry does not exist and you may need to manually edit the xml file like below.
4. Add the line  <namespace path="/apps" metadata-store-usage="mstore-usage_2"/> under  <metadata-namespaces>.

5. Navigate to  <metadata-store-usages> and add the entry for "mstore-usage_2" if it does noe exists. If the entry exists make sure the entry for MDS password. <property name="jdbc-password" value="oracle"/>. More than often you need to add it manually.
                <metadata-store-usage id="mstore-usage_2">
               <metadata-store class-name="oracle.mds.persistence.stores.db.DBMetadataStore">
                 <property name="jdbc-userid" value="DEV_MDS"/>
                 <property name="jdbc-password" value="oracle"/>
                 <property name="jdbc-url"
                           value="jdbc:oracle:thin:@localhost:1521:XE"/>
                 <property name="partition-name" value="soa-infra"/>
               </metadata-store>
             </metadata-store-usage>

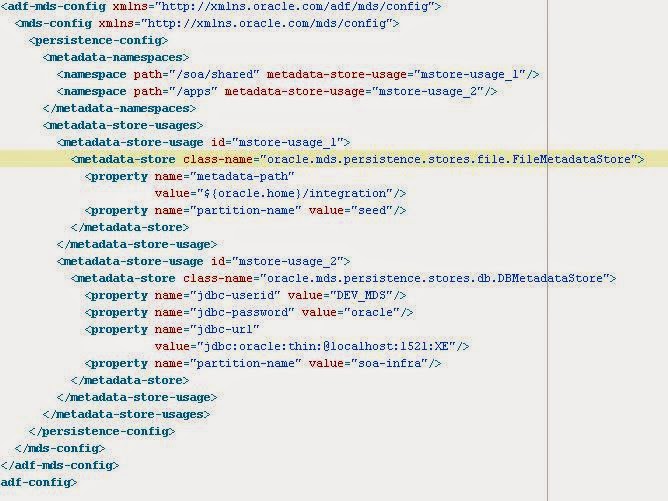

6. Sample XML File.
